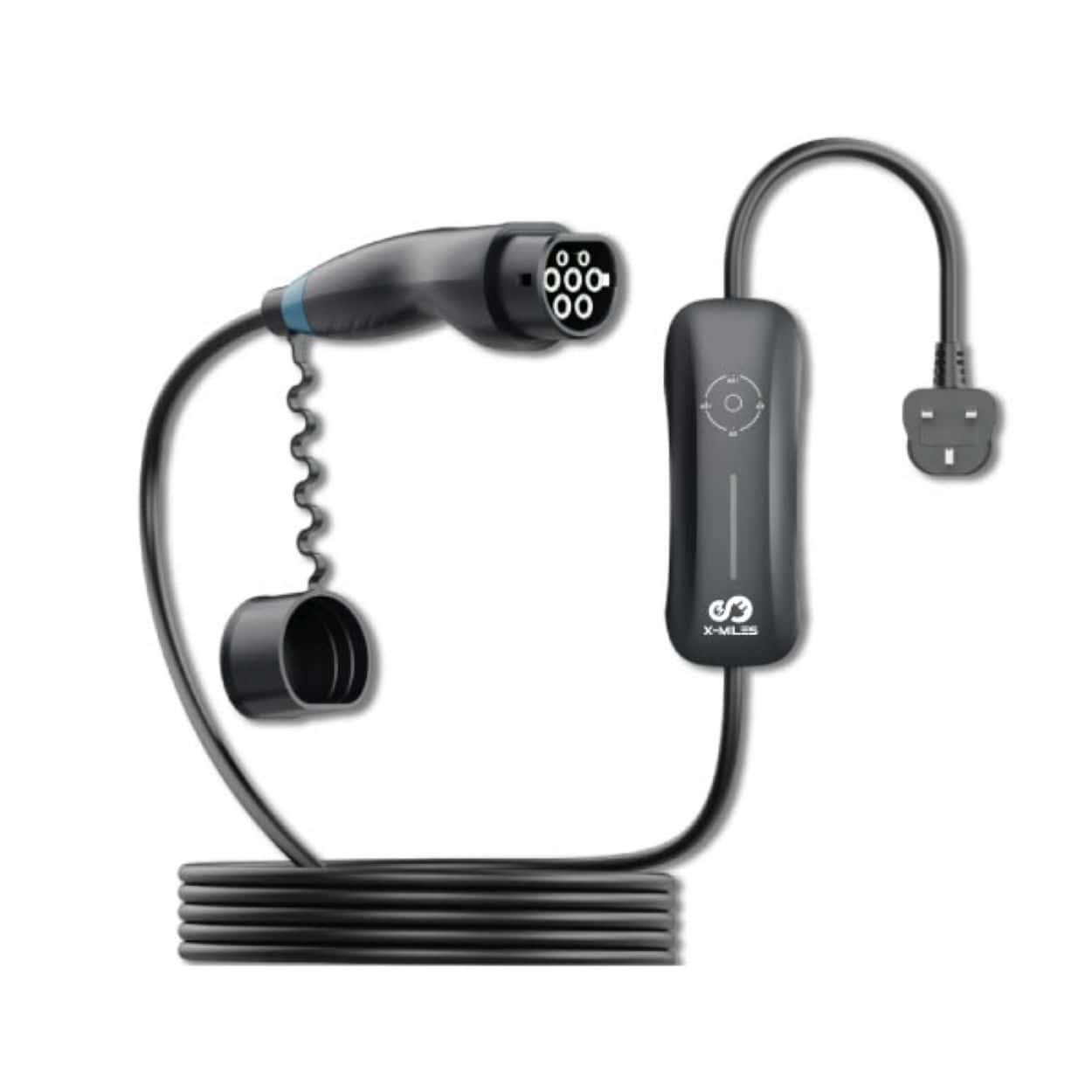

The X-MILES EVSmart XMT-AU-PE-13L is a versatile portable EV charger—perfect for travel, daily commuting, or spontaneous road trips. Designed for flexibility and convenience, it empowers EV owners to recharge their vehicles wherever they go, giving peace of mind and reducing range anxiety.
Delivering up to 2.8kW with 13A current via a 3-pin UK socket, the charger offers adjustable current settings of 6A, 8A, 10A, or 13A to suit different power sources. Safety is built-in, featuring RCD protection (AC 30mA Type A), current and temperature safeguards, and automatic fault repair to ensure reliable, stable operation.

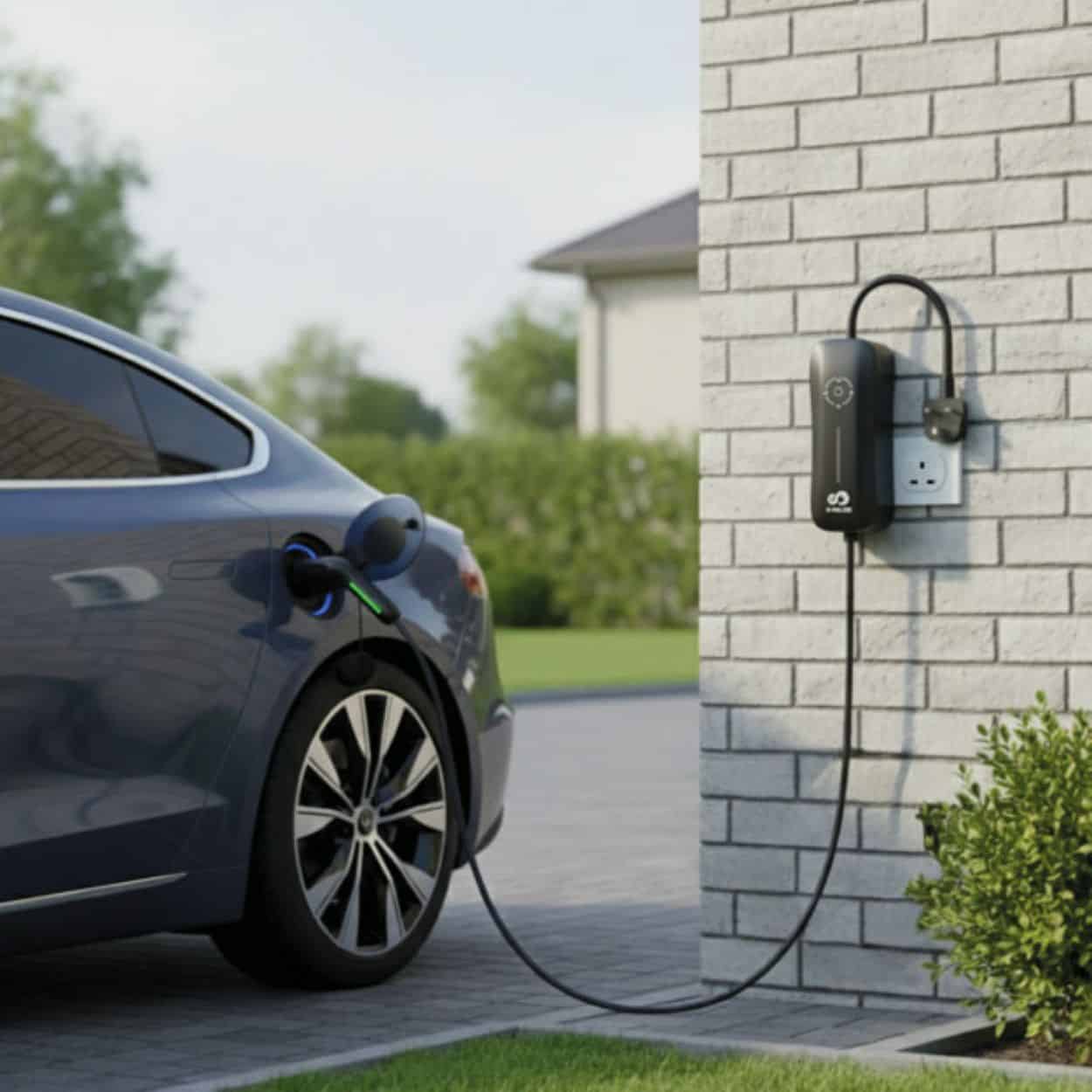

Whether wall-mounted or pedestal-mounted, the X-MILES EVSmart XMT-AU-PE-13L adapts to any environment, providing a portable, safe, and dependable charging solution for modern EV drivers.
Type 2 Mobile Charging Specification
Download DataSheet XMT-AU-PE-13L
XMT-AU-PE-13L
| POWER |
| Input Rating |
95V~270V |
| Maximum Power |
2.8kW |
| Maximum Current |
13A |
| Adjustable Current |
6A, 8A, 10A, 13A |
| Mains Frequency |
50 / 60 Hz |
| Connector Point |
Type 2 |
| Ground Fault Detection |
Built-in RCD (AC 30mA Type A) |
| Protection |
Leakage protection, Lightning protection, Overload protection, Over/Under voltage protection, Over temperature protection |
| USER INTERFACE |
| Status Indication |
LED Indication |
| CERTIFICATION & STANDARDS |
| Certification |
CE |
| Compliance |
EN IEC 61851-1:2019, IEC 61851-1:2017, EN 61851-21-1:2017, IEC 61851-21-1:2017, EN 61851-22-2002, EN 62572:2016+a1:2020, IEC 62752:2016+A1:2018, EN IE 62196-1:2022, EN IEC 62196-2:2022, EN 17186:2019 |
| Warranty |
24 months |
| GENERAL |
| Protection Degree |
IP67 (function box) |
| Cable Jacket |
TPU |
| Operating Temperature |
-30°C ~ +50°C |
| Operating Humidity |
5~95% |
| Mounting |
Mobile or Wall-mounted |
| Colour |
Black |
| Product Dimensions (H x W x D) |
192.2mm*72.2mm*53.8mm |
| Weight |
1.6 kg |
