EVSmart DC Charging

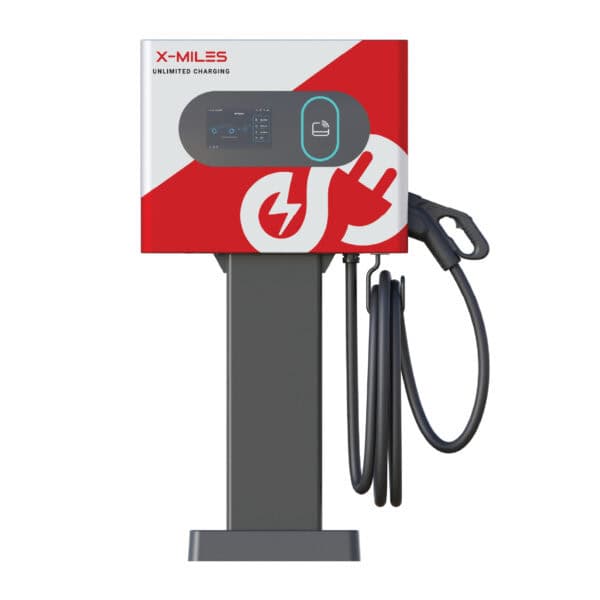

XMT-EVD002-S DC Charger

(20kW/30kW/40kW)

  • 20kW, 30kW & 40kW (3-Phase)
  • 5 Meter CCS2 cable
  • 3P+N+PE
  • Plug & Charge, RFID, QR, OCPP 1.6 / 2.0.1
  • Ethernet, Wi-Fi, 4G
  • LED Indication
  • 7-inch LCD Touchscreen
  • 24 Months Warranty
Categories: ,
Tags: , , ,

Engineered for speed and reliability, the X-MILES EVSmart XMT-EVD002-S delivers consistent DC charging with selectable output options of 20kW, 30kW, or 40kW—perfect for high-efficiency EV charging in commercial and fleet environments.

Integrated with OCPP 1.6, it enables seamless charger management, remote monitoring, and enhanced operational control. Its epoxy-sealed DC power module offers superior resistance to dust, humidity, and salty air, making it ideal for coastal or industrial settings.

Built to withstand tough conditions, the unit features:

  • NEMA 3S-rated protection for outdoor resilience
  • IK10 vandal-proof casing for maximum physical security
  • IK8-rated 7-inch colour touchscreen for intuitive, multilingual user interaction

Whether deployed in urban centres, transit hubs, or remote locations, the X-MILES EVSmart XMT-EVD002-S combines rugged durability with smart functionality to keep EVs powered and drivers moving.

Applications

🏭 Commercial
⛽ Gas Station
🚛 Fleet
🚗 Parking

Dimensions

EVSmart AC Charging Specification

Download DataSheet XMT-EVD002-S

XMT-EVD002HP-S
POWER XMT-EVD002-S/20E XMT-EVD002-S/30E XMT-EVD002-S/40E
AC Input AC Connection 3-Phase, L1, L2, L3, N, PE
Input Voltage Range 400V±10%
Input Frequency 50Hz or 60Hz
AC Input Power 32A, 22kVA 48A, 33kVA 64A, 44kVA
DC Output Maximum Power 20kW 30kW 40kW
Charging Outlet 1*CCS2 cable
Cooling Method Air-cool
Cable Maximum Current 80A 100A
Cable Length 4.5m
DC Output Voltage 200-1000 Vdc
Protection Overcurrent, Over/Undervoltage, Intregrated surge protection, Grounding protection, Overtemp protection
Power Factor (Full Load) ≥0.98
Effiency (peak) ≥95%
USER INTERFACE
User Interface 7” LCD high-contrast touchscreen
Language System English (Other languages available upon request)
Local Authentification Plug & Charge / RFID / QR Code
Emergency Button Yes
Internet Connectivity Ethernet, 4G, WiFi
LIGHT CODES
Standby Power Solid Green
Charging Green Blinking
Finish Charging Solid Green
Fault Solid Red
ENVIRONMENTAL
Operating Temperature  -25°C to +50°C
Storage Temperature  -40°C to +70°C
Storage Humidity <95%, non-condensing
Operating Altitude Up to 2000m
MECHANICAL
IP/IK Rating IP55 and IK10 (excluding touch screen & RFID cover)
Operating Noise Level ≥65dB
Cabinet Material Stainless 430 Steel
Screen Material Temper glass
Packing Material Wooden case
Mounting Wall-mount or Pedestal stand
Anti-theft Lock Design Key Lock
Mounting Auxiliary Handle Yes
Dimension (H x W x D) 560mm*700mm*225mm
Net Weight (kg) 42
Warranty 24 months
ACCORING TO STANDARDS
Safety & Compliance IEC 61851-1, IEC 61851-23
EMC IEC 61851-21-2
Protocol EV Communication IEC 61851-24
Backend Support OCPP 1.6 (Can be upgraded to OCPP 2.0.1 later)
DC Connector IEC 62196-3
RFID Authentification ISO 14443 A
Weight 200 kg
Dimensions 80 × 30 × 50 cm
