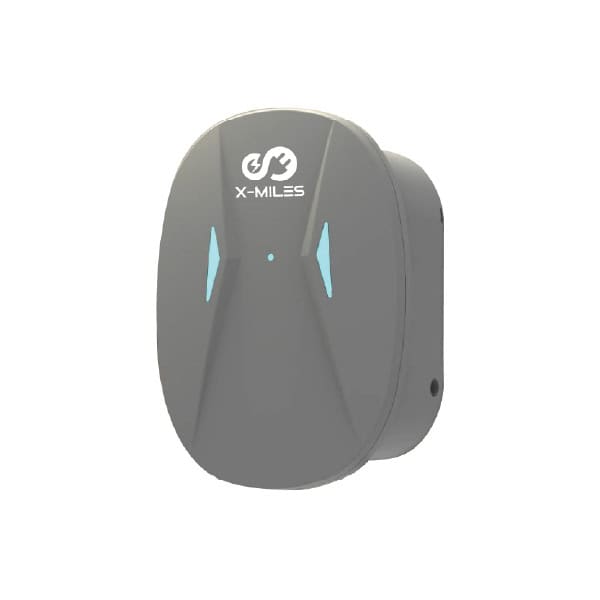

Simple, reliable, and efficient—the X-MILES EVSmart XMT-EVH003 is a Type 2 AC socket EV charger designed for users who value straightforward plug-and-charge functionality. Available in 22kW output options, it offers flexible charging speeds to suit a variety of EVs and usage needs.

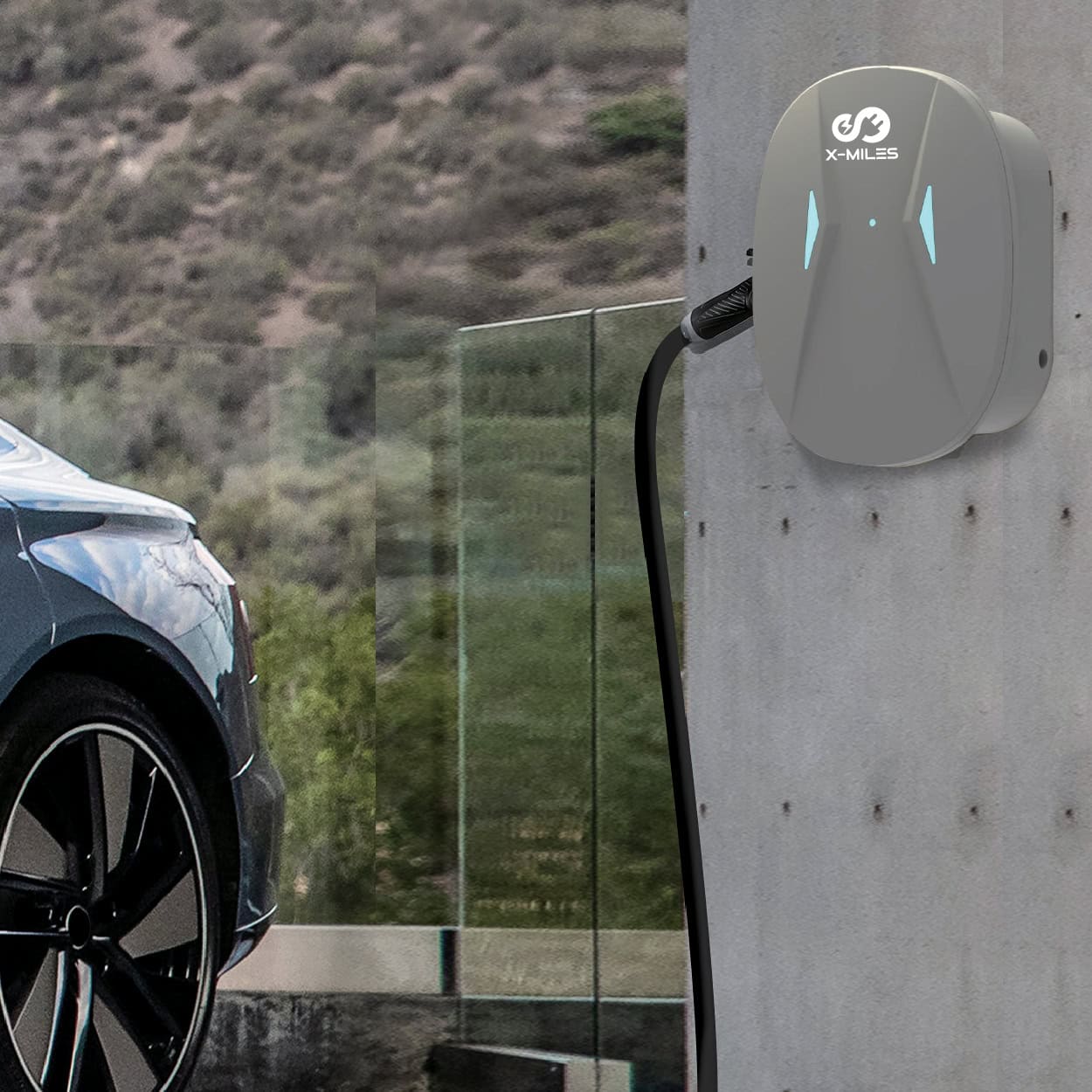

Its wall-mounted design makes it an ideal solution for homes, apartment complexes, and workplace, where space-saving installation and ease of use are key.
Key highlights:
- Type 2 AC socket for universal EV compatibility
- Plug-and-charge simplicity—no apps or cards required
- Compact wall-mount form factor for clean, unobtrusive installation
- Available in 22kW to match your power supply and vehicle requirements
Whether you’re upgrading your garage or outfitting a small fleet, the X-MILES EVSmart XMT-EVH003 delivers dependable charging with minimal fuss.
EV Smart AC Charging Specification
Download DataSheet XMT-EVH003
XMT-EVH003
| POWER |
| Input Rating |
|
400V±10% (Three-Phase) |
| Output Current & Power |
|
22kW (32A) |
| Power Wiring |
|
L1 / L2 / L3 / N / PE |
| Input Cord |
Hardwire |
| Mains Frequency |
50 / 60 Hz |
| Connector Point |
IE 62196-2 Complaint, Type 2 socket |
| Ground Fault Detection |
Built-in RCD (AC 30mA + DC 6mA) |
| Protection |
UVP, OVP, RCD, SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection |
| USER INTERFACE |
| Status Indication |
LED Indication |
| Connectivity |
Bluetooth, Wi-Fi 4, Ethernet |
| User Authentification |
Plug & Charge |
| Software Update |
OTA |
| CERTIFICATION & STANDARDS |
| Safety & Compliance |
EN 62196-2:2017-06, EN IEC 61851-1:2019-10, EN IEC 61851-21-2:2021-09, EN 62196-1:2015-05, EN 61008-1 and IEC 62955 |
| Warranty |
24 months |
| GENERAL |
| Enclosure Rating |
IP54, IK08 |
| Operating Altitude |
<2000m |
| Operating Temperature |
-30°C ~ +50°C |
| Operating Humidity |
5~95% |
| Mounting |
Wall mount / Pedestal (Optional) |
| Colour |
Grey |
| Product Dimensions (H x W x D) |
380mm*280mm*158mm |
| Package Dimensions (H x W x D) |
500mm*345mm*230mm |
