EVSmart AC Charging

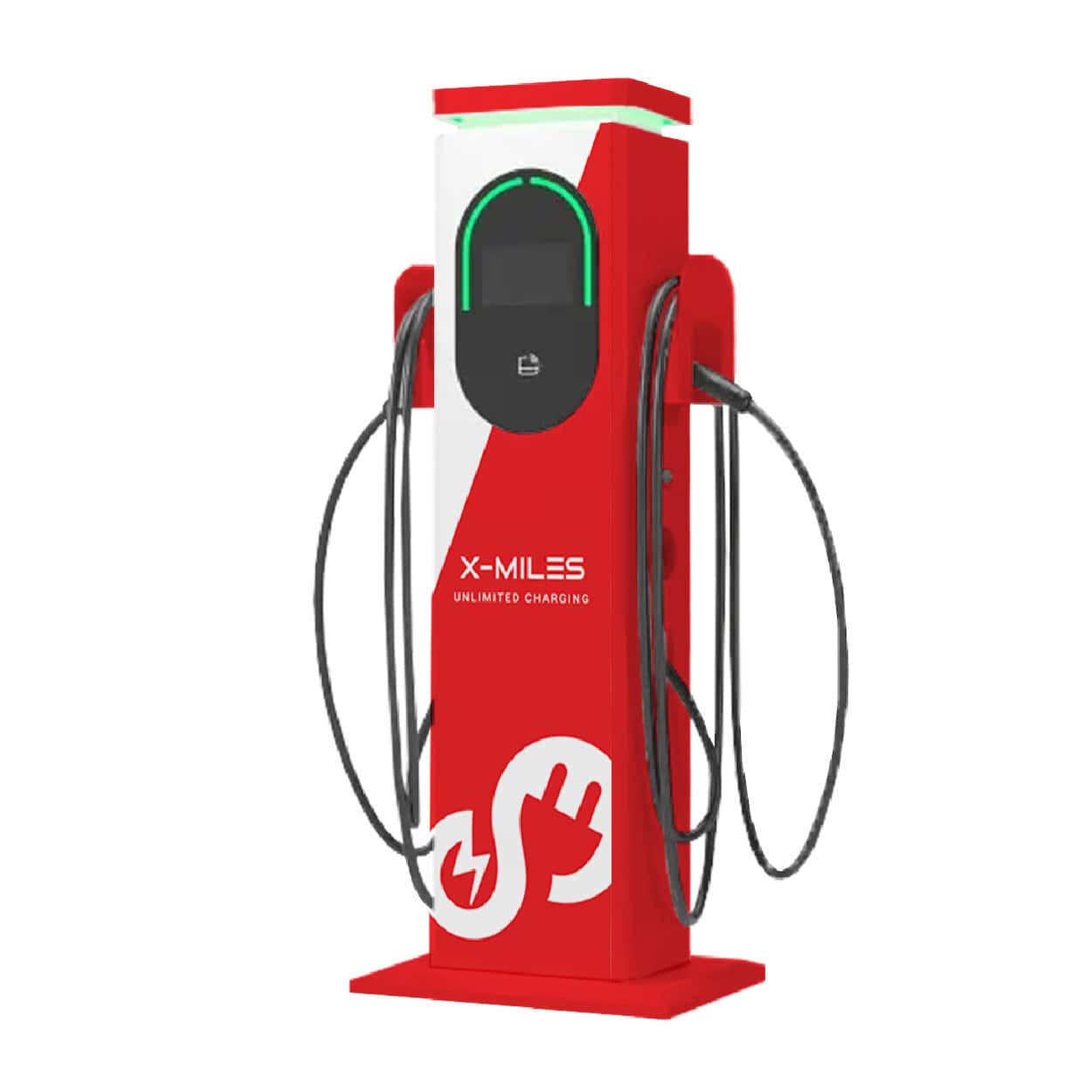

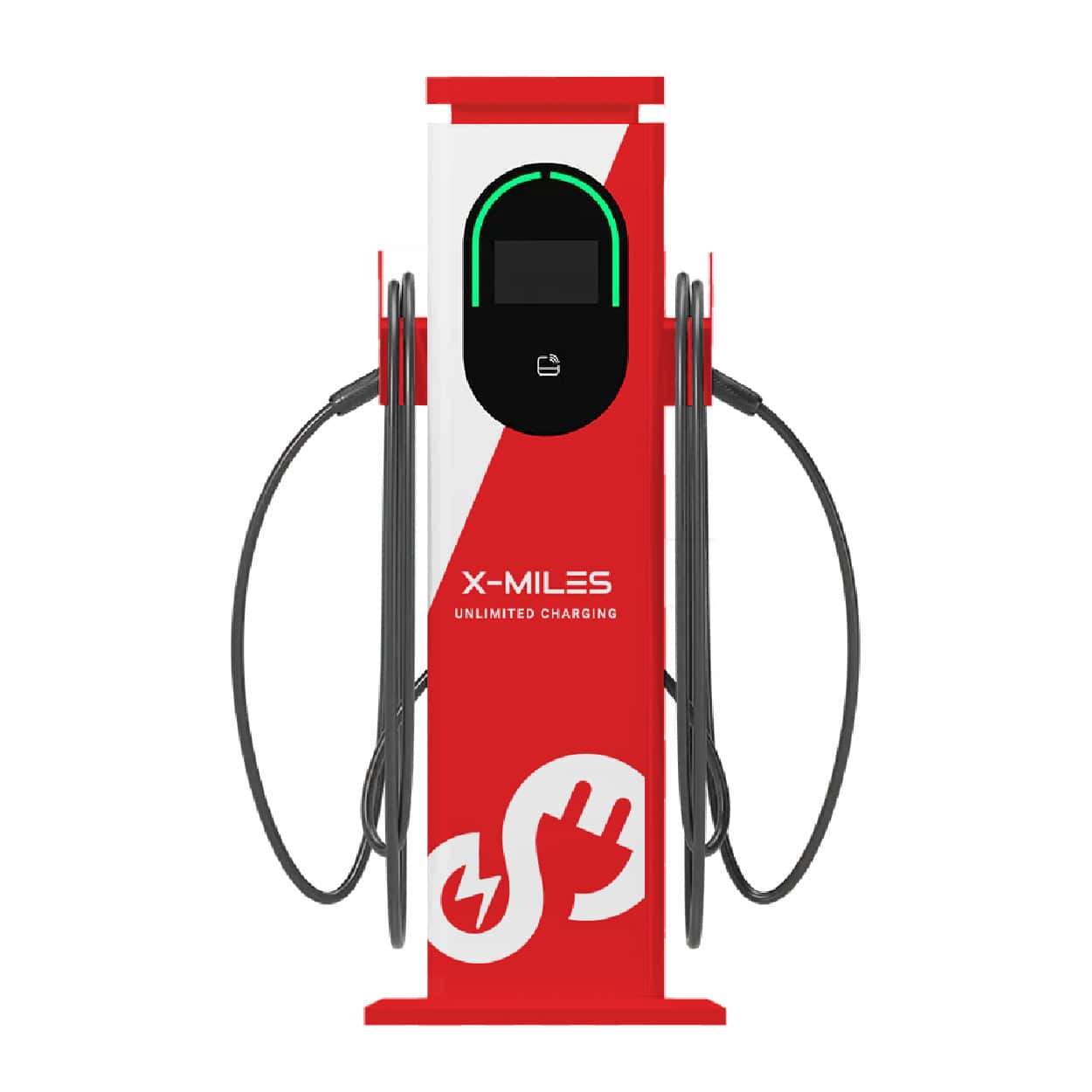

XMT-EVM007 AC Charger

(7kW/22kW)

  • 7kW (1-Phase) & 22kW (3-Phase)
  • Dual tethered 5 Meter Type 2 Cable
  • 1P+N+PE / 3P+N+PE
  • Plug & Charge, App, RFID, Credit Card (Optional), OCPP 1.6 / 2.0.1
  • Bluetooth, Ethernet, Wi-Fi, 4G
  • LED Indication
  • 7-inch Touchscreen
  • Emergency Button
  • 36 Months Warranty

The X-MILES EVSmart XMT-EVM007 is a sleek and intelligent dual-port EV charging solution designed for high-traffic environments. Available in cable configurations, it delivers dependable charging at 7kW or 22kW, making it ideal for public spaces, commercial sites, and multi-unit developments.

Built for smart connectivity, it supports OCPP 1.6J and 2.0.1, with optional ISO 15118 Plug & Charge functionality for seamless user authentication and automated charging.

Designed with user experience in mind, the XMT-EVM007 features:

  • A 7-inch touchscreen with OTA upgrade capability for future-proof functionality
  • Ambient lighting at the socket and pole top for enhanced visibility and intuitive night time use
  • A modern, durable design that complements urban and commercial landscapes

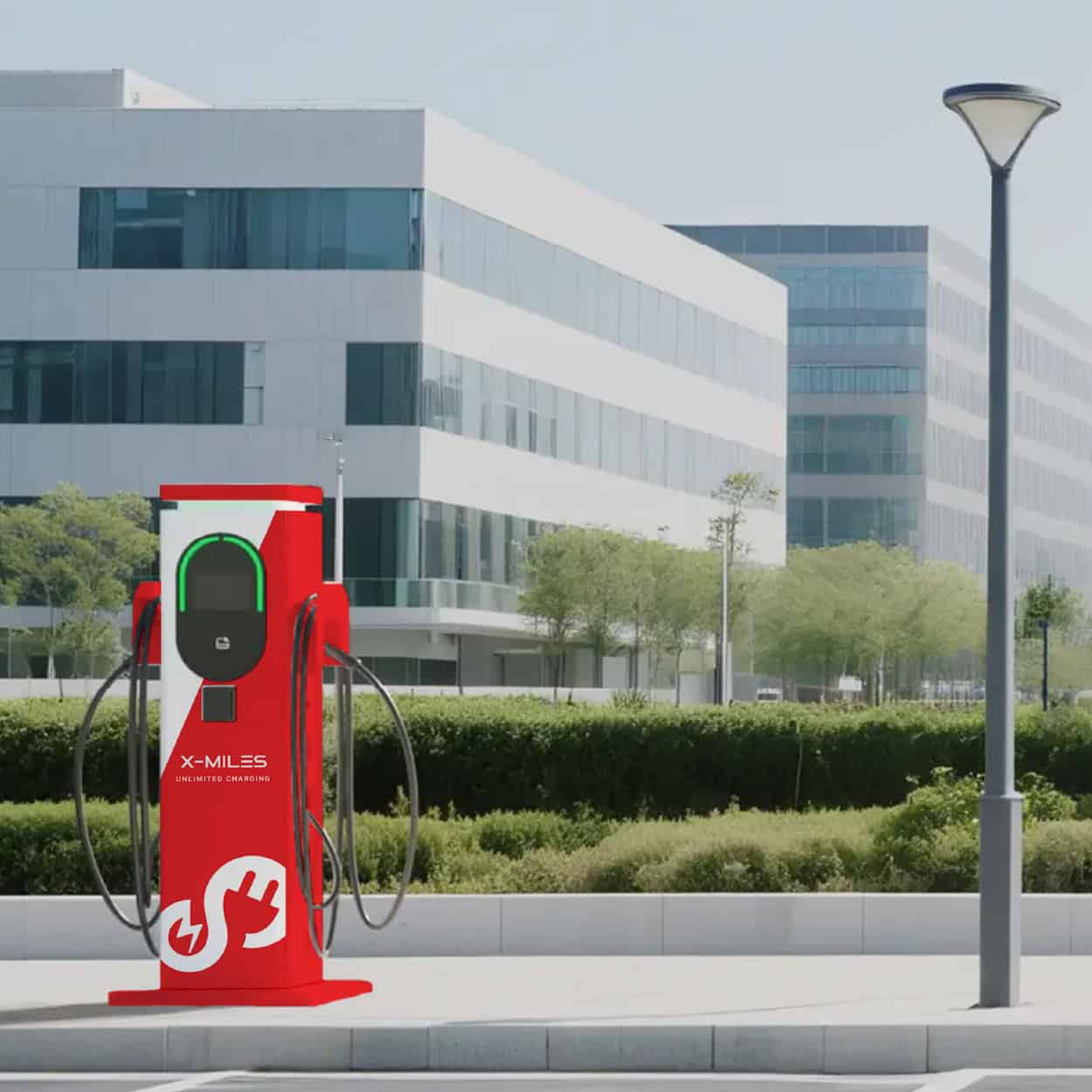

Whether installed curbside, in parking garages, or at retail hubs, the X-MILES EVSmart XMT-EVM007 combines performance, style, and smart features to elevate the EV charging experience.

Applications

🏪 Retail
👜 Shopping Center
🏬 Hospitality
💼 Working Place
🏢 Commercial Building
🚗 Parking Operators

Dimensions

EVSmart AC Charging Specification

Download DataSheet XMT-EVM007

XMT-EVM007
POWER
Input Rating 230V±10% (Single-Phase) 400V±10% (Three-Phase)
Output Current & Power 7.4kW (32A) 22kW (32A)
Power Wiring L / N / PE L1 / L2 / L3 / N / PE
Mains Frequency 50 / 60 Hz
Connector Point Type 2 with 5m cable
Ground Fault Detection Built-in RCD (AC 30mA + DC 6mA)
Protection Over current protection, Short-circuit protection, Residual current protection, Surge protection, Over/Under voltage protection, Over temperature protection
Meter MID Meter
Type of Protection Against Electric Shock Class I equipment
EMC Class Class B
Grounding system support TT, TN, IT
USER INTERFACE
Status Indication LED Indication (Green / Blue / Red)
User Interface Compatible with multiple CPOs
Connectivity Bluetooth, Wi-Fi 6 (2.5G & 5GHz) , Ethernet, 4G LTE
Communication Protocols OCPP 1.6J
Pile Group Management Dynamic Load Balancing, CT-Clamp, CT-Box
User Authentification Plug & Charge, RFID Card, APP, OCPP 1.6 / 2.0.1, Credit Card (Optional)
Card Reader ISO 14443 A/B, Mifare
Charging Mode Mode 3
POS machine Optional
CERTIFICATION & STANDARDS
Safety & Compliance EN 62196-2:2017-06,   EN IEC 61851-1:2019-10,   EN IEC 61851-21-2:2021-09,   EN 62196-1:2015-05,   EN 61008-1 and IEC 62955
Certification CE
Warranty 24 months
GENERAL
Enclosure Rating IP65 , IK10, IK8 (for screen) / steel
Operating Altitude <2000m
Operating Temperature  -30°C ~ +50°C
Operating Humidity 5~95%
Mounting Stand
Product Dimensions (H x W x D) 1524mm*380mm*280mm
