EVSmart DC Charging

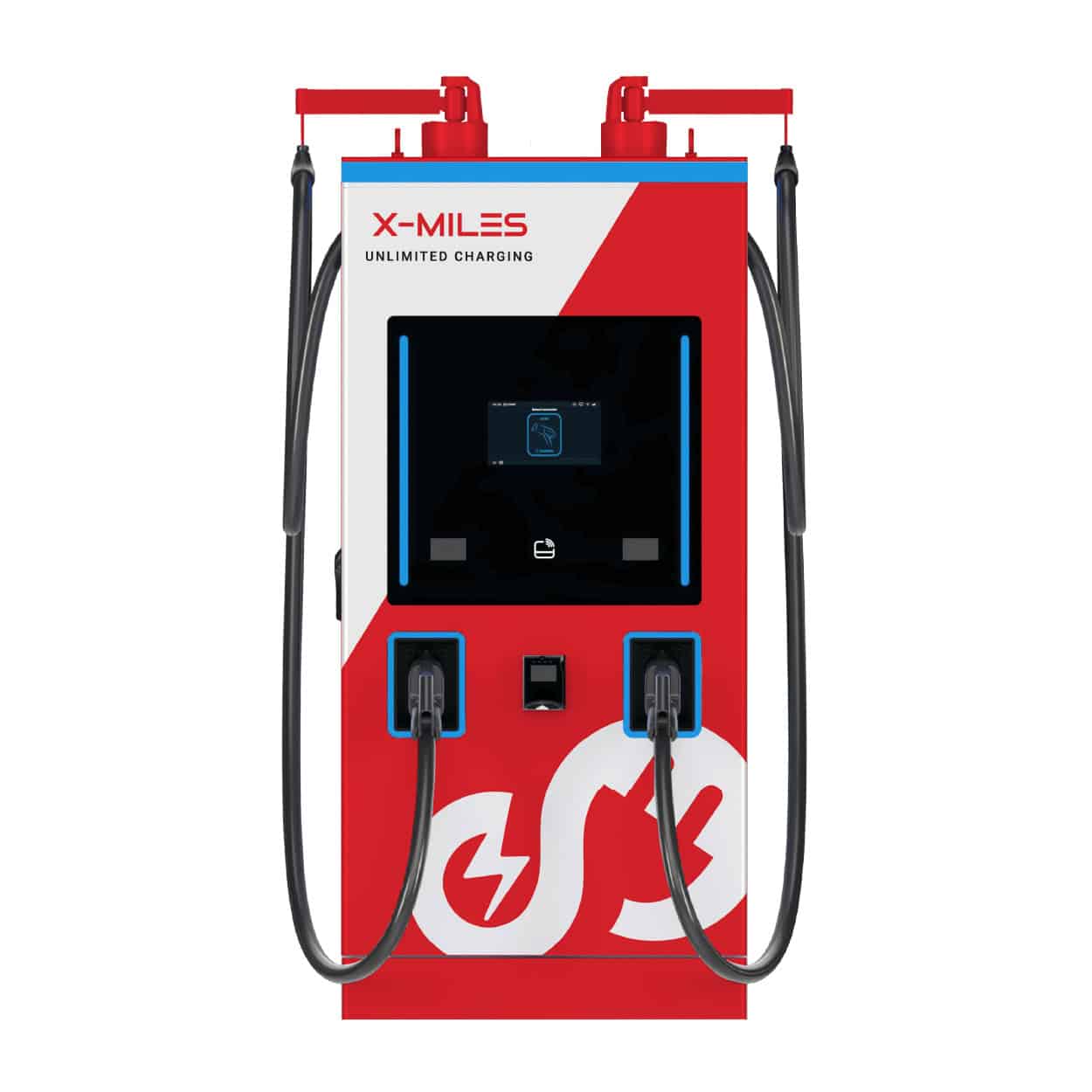

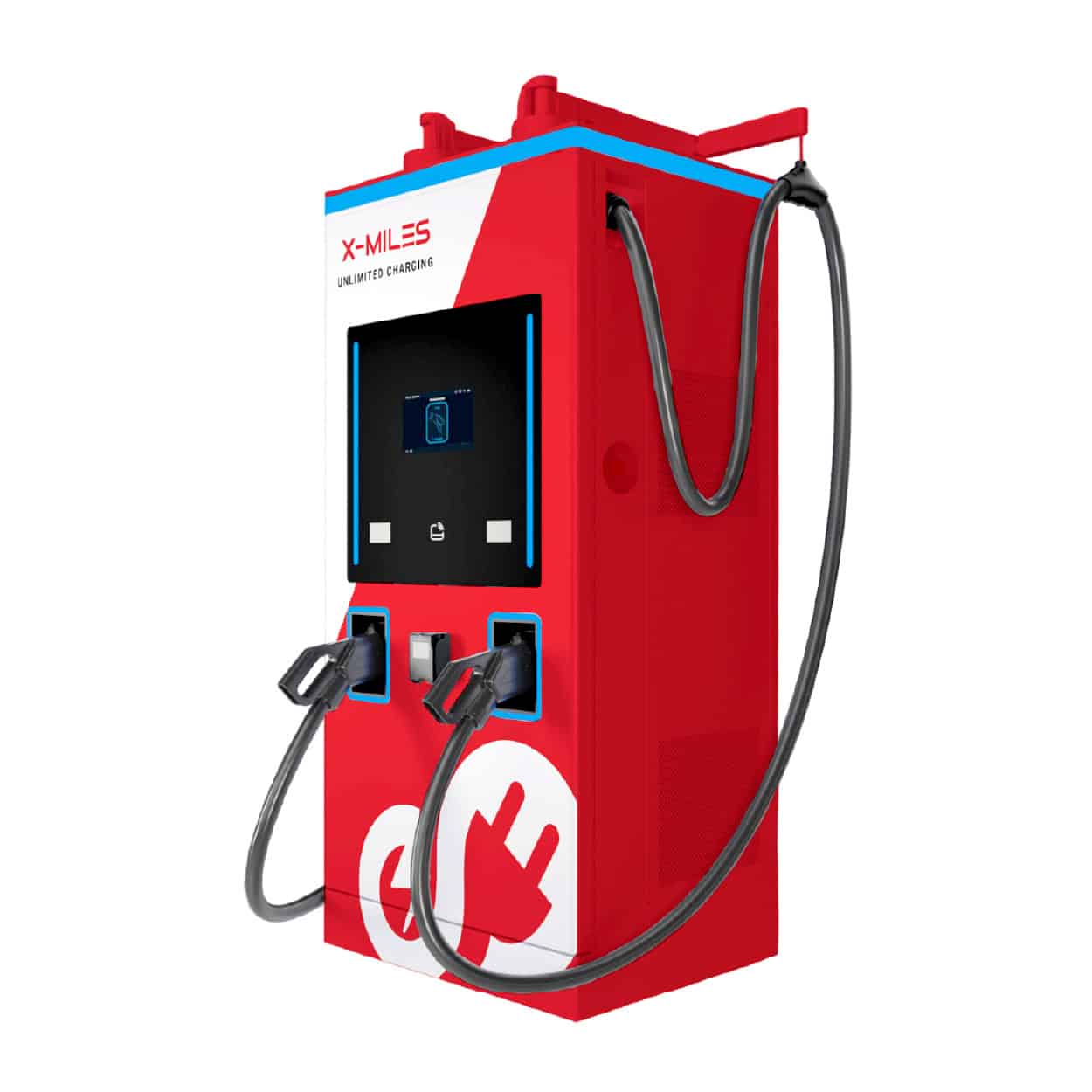

XMT-EVD003 DC Charger

(60kW/80kW/120kW/160kW)

  • 60kW, 80kW, 120kW & 160kW (3-Phase)
  • Dual 4.5 Meter CCS2 cable, 5 Meter (Optional)
  • 3P+N+PE
  • Plug & Charge, RFID, QR, Credit Card (Optional), OCPP 1.6 / 2.0.1
  • Ethernet, Wi-Fi, 4G
  • LED Indication
  • 7-inch LCD Touchscreen
  • Emergency Button
  • 24 Months Warranty

The X-MILES EVSmart XMT-EVD003 is a high-performance DC EV charger offering 60kW to 160kW of flexible output, making it a powerful solution for fast, efficient charging across commercial and public applications. With dynamic load balancing, it intelligently distributes power to meet varying demand while optimizing energy use.

Engineered for versatility, the EVD003 supports:

  • CCS2 dual and CCS + GB/T socket configurations
  • Plug & Charge via DIN70121 and ISO 15118 standards
  • OCPP 1.6 and 2.0.1 for seamless backend integration and remote management

Delivering up to 96% charging efficiency, the unit includes 24/7 remote monitoring and IP55-rated protection, ensuring reliable performance in diverse environmental conditions.

Compact and adaptable, the X-MILES EVSmart XMT-EVD003 is an ideal choice, seeking scalable, future-ready DC charging infrastructure.

Applications

🏭 Commercial
⛽ Gas Station
🚛 Fleet

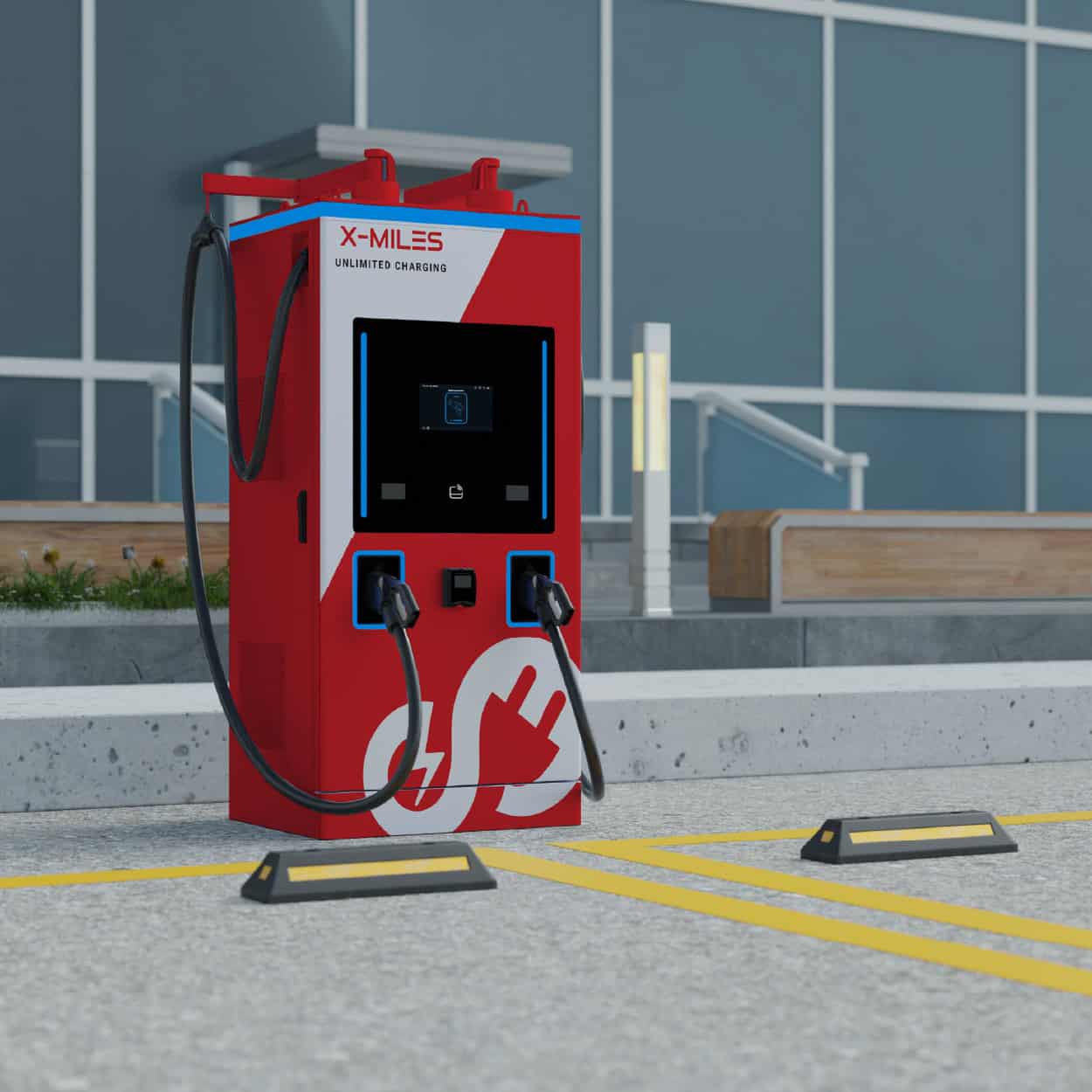

🚗 Parking

Dimensions

EVSmart DC Charging Specification

Download DataSheet XMT-EVD003

XMT-EVD003
POWER XMT-EVD003/60E XMT-EVD003/80E XMT-EVD003/120E XMT-EVD003/160E
AC Input AC Connection 3-Phase, L1, L2, L3, N, PE
Input Voltage Range 400V±15%
Input Frequency 50Hz or 60Hz
AC Input Power 92A, 65kVA 124A, 87kVA 186A, 130kVA 248A, 174kVA
Power Factor (Full Load) ≥0.99
DC Output Maximum Power 60kW 80kW 120kW 160kW
Charging Outlet 2*CCS2 cable / 1*CCS2 cable + 1* GBT cable
Cooling Method Air-cool
Cable Maximum Current 200A 250A/300A (Optional)
Cable Length 4.5m / 5m (Optional)
DC Output Voltage 200-1000 Vdc
Efficiency (peak) ≥96%
USER INTERFACE
User Interface 7” LCD high-contrast touchscreen
Language System English (Other languages available upon request)
Local Authentification Plug & Charge / RFID / QR Code
Emergency Button Yes
Internet Connectivity Ethernet, 4G, WiFi
LIGHT CODES
Standby Power Solid Green
Charging Blue Breathing
Finish Charging Solid Blue
Reservation Charging Solid Yellow
Device Unavailable Yellow Blinking
OTA Yellow Blinking
Fault Solid Red
ENVIRONMENTAL
Operating Temperature  -25°C to +50°C
Storage Temperature  -40°C to +70°C
Storage Humidity <95%, non-condensing
ACCORING TO STANDARDS
Safety & Compliance IEC 61851-1, IEC 61851-23
EMC IEC 61851-21-2
Protocol EV Communication IEC 61851-24, DIN70121 & ISO15118-2
Backend Support OCPP 1.6 (Can be upgraded to OCPP 2.0.1)
DC Connector IEC 62196-3, GB/T 20234.3
RFID Authentification ISO 14443 A/B
Weight 200 kg
Dimensions 80 × 30 × 50 cm
