EVSmart AC Charging
XMT-EVM008 AC Charger

(7kW/11kW/22kW)

  • 7kW (1-Phase), 11kW & 22kW (3-Phase)
  • Tethered 5 Meter Type 2 Cable
  • 1P+N+PE / 3P+N+PE
  • Plug & Charge, RFID, OCPP 1.6 / 2.0.1
  • Bluetooth, Ethernet, Wi-Fi (Optional), 4G (Optional)
  • LED Indication
  • 3-inch Touchscreen
  • 36 Months Warranty

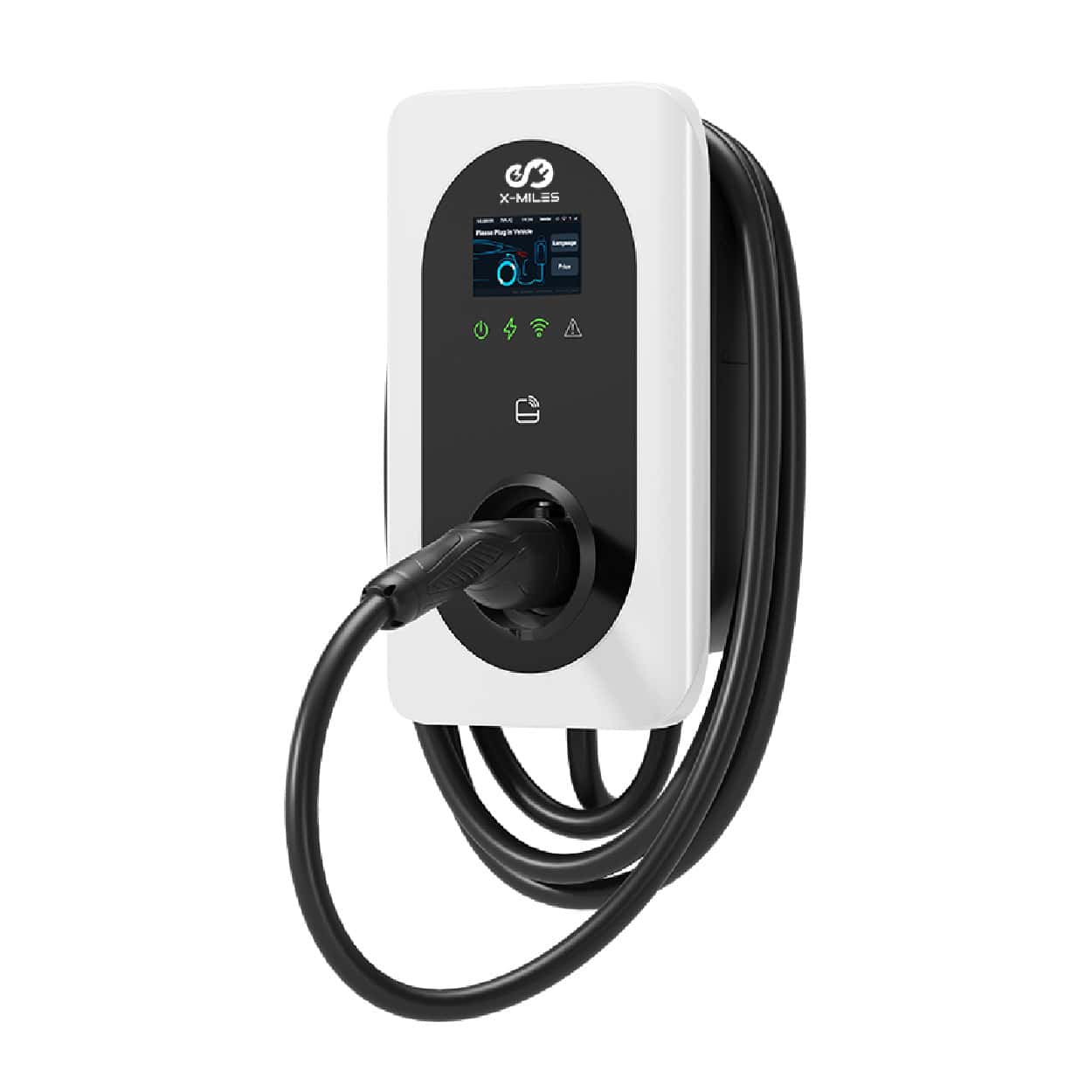

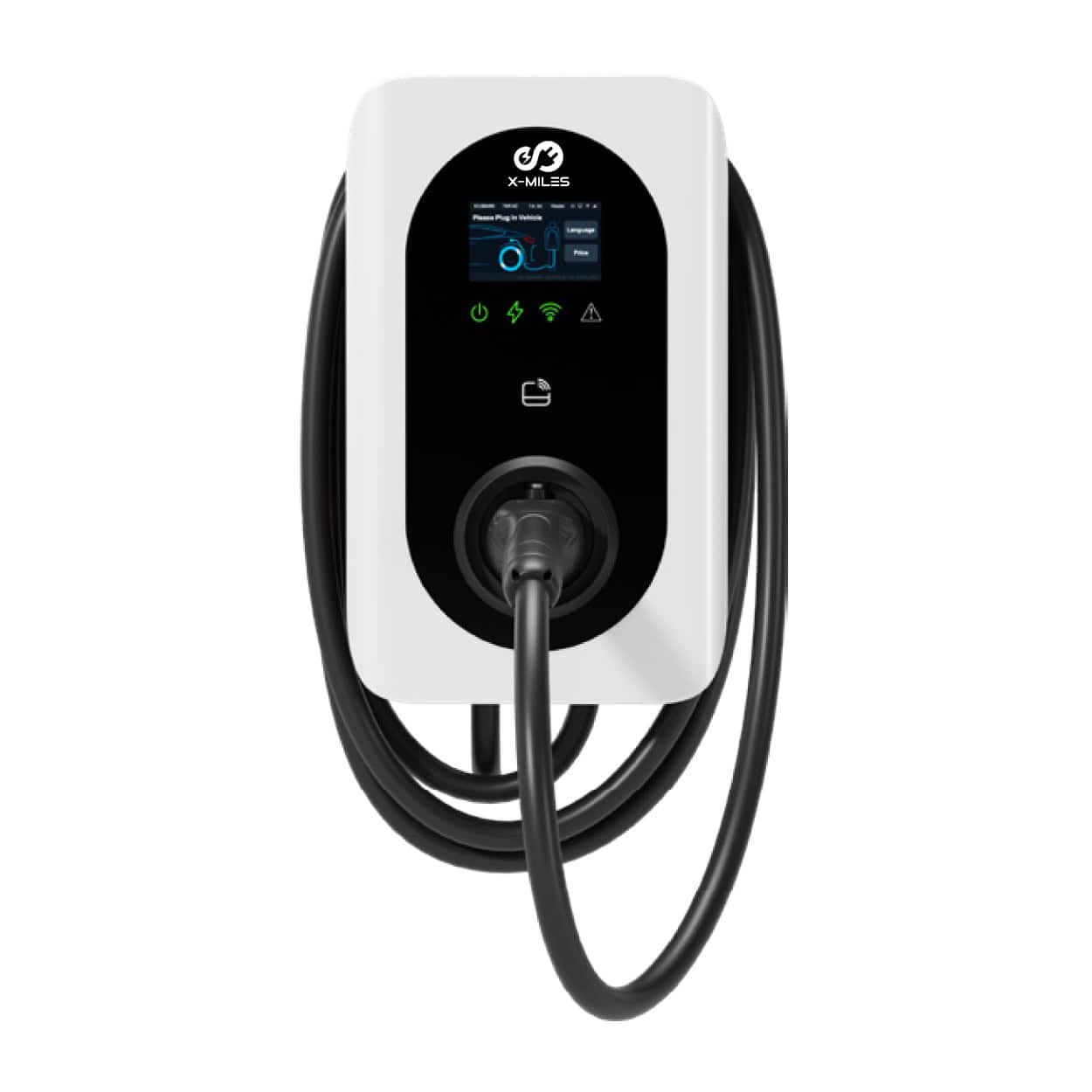

The X-MILES EVSmart XMT-EVM008 is a Mode 3 EV charger designed to meet the evolving needs of modern EV users. Supporting 7kW (single-phase) to 22kW (three-phase) input, it’s the ideal solution for residential, workplaces, retail centres, hospitality venues, and commercial properties.

Now enhanced with three charging modes—Plug & Charge, RFID, and App control—the XMT-EVM008 offers flexible user access and seamless operation. It supports both OCPP 1.6J and 2.0.1, along with ISO 15118-2 standards (P&C, EIM), ensuring future-ready connectivity and smart charging capabilities.

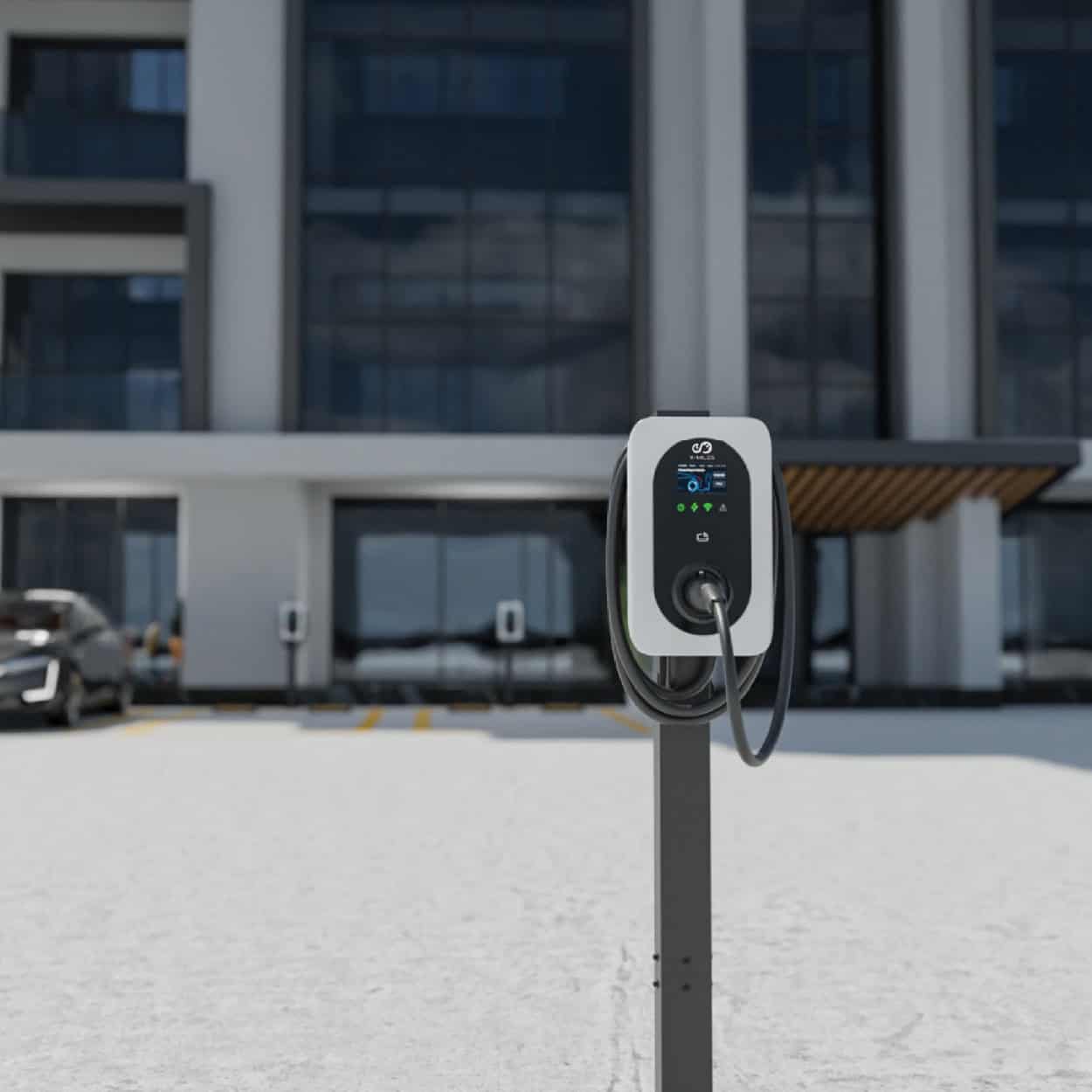

X-MILES EVSmart XMT-EVM008 adapts to any site with wall-mounted or pedestal-mounted installation options. Whether you’re upgrading a residential or deploying across a business campus, this charger delivers reliable performance with a sleek, user-friendly design.

Applications

🏪 Retail
👜 Shopping Center
🏬 Hospitality
💼 Working Place
🏢 Commercial Building
🚗 Parking Operators

Dimensions

EVSmart AC Charging Specification

Download DataSheet XMT-EVM008

XMT-EVM008
MODEL XMT-EVM008C XMT-EVM008 w/o
Power Supply P+N+PE (Single phase); 3P+N+PE 480Vac±10% (Three phase)
Input Rating 230V±20% (Single phase): 400V±20% (Three phase)
Output Current & Power Single phase: 7kW (32A); Three phase: 22kW (32A)
Mains Frequency 50 / 60 Hz
Connector Point Type 2 with 5m cable
RCCB TypeA 40A
RCD 30mA AC+6mA DC
Protection Over current protection,  Residual current protection,  Surge protection,  Over/Under voltage protection,  Over temperature protection
Meter With MID Meter Without MID Meter
Type of Protection Against Electric Shock Class I equipment
EMC Class Class B
Grounding system support TT, TN
USER INTERFACE
Status Indication LED Indication (Green / Blue / Red)
RFID Reader Support ISO 14443 A/B, Mifare
Display 4.3 inches touch screen with ambient light sensor for adjustable screen brightness
Communication Protocols OCPP 1.6J & OCPP 2.0.1
Start Mode Plug & Charge, RFID Card, APP (with 3rd CPO)
Charging Mode Mode 3
WiFi WiFi 4 (2.4GHz), WiFi 6 (2.4G & 5G) Optional
4G 4G LTE (Optional)
Ethernet & Bluetooth Yes
GENERAL
Ingress Protection IP65
Impact Protection / Enclosure IK10, IK8 (for screen) / PC & Tempeted Glass
Operating Altitude <2000m
Operating Temperature  -30°C ~ +50°C
Operating Humidity 5~95%
Mounting Wall-mounted / Pedestal-mounted
Product Dimensions (H x W x D) 454mm*286mm*162mm
Weight 200 kg
Dimensions 80 × 30 × 50 cm
