The X-MILES EVSmart XMT-EVL008 delivers up to 22kW of flexible AC charging into a compact, space-saving design, perfect for homes, workplaces, and commercial for simple charging functionality. Built for safety, it features RCD protection (AC 30mA + DC 6mA) and PEN fault protection, giving you peace of mind in every charge.
Smart functionality is at the heart of the XMT-EVL008, with advanced features including:
- Remote monitoring & control through the Home App
- Tamper switch for enhanced physical security
- Robust cybersecurity to protect against unauthorized access
With dynamic load balancing via CT-clamp or CT-box, the XMT-EVL008 optimizes energy usage, avoids overloads, and maximizes efficiency. Its OCPP 1.6J & 2.0.1 support allows seamless integration with over 50 EV platforms globally.

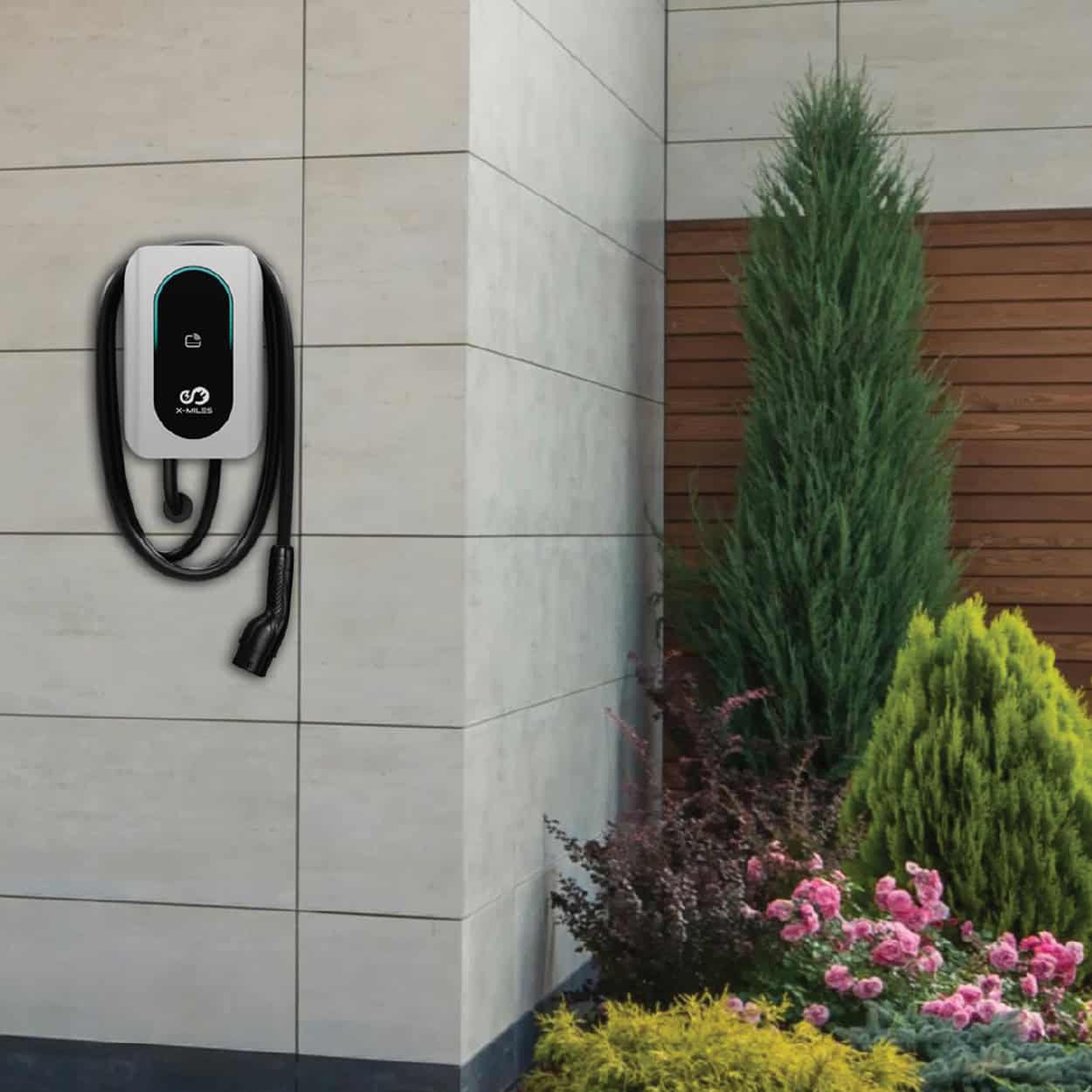

Whether wall-mounted in a garage or installed at a business site, the X-MILES EVSmart XMT-EVL008 delivers intelligent energy management, reliable high-speed charging, and sleek design—the perfect EV charging solution for modern life.
EV Smart AC Charging Specification
Download DataSheet XMT-EVL008
XMT-EVL008
| POWER |
| Input Rating |
230V±10% (Single-Phase) |
400V±10% (Three-Phase) |
| Output Current & Power |
7kW (32A) |
11kW (16A) / 22kW (32A) |
| Power Wiring |
L / N / PE |
L1 / L2 / L3 / N / PE |
| Input Cord |
Double Insulated Cable (Cable not included) |
| Mains Frequency |
50 / 60 Hz |
| Connector Point |
IEC 62196-2 Compliant, Type 2 with 5m cable / 7m (Optional) |
| Ground Fault Detection |
Built-in RCD (AC 30mA + DC 6mA) |
| Protection |
UVP, OVP, RCD, SPD, Ground Fault Protection, OCP, OTP, Control Pilot Fault Protection |
| USER INTERFACE |
| Status Indication |
LED Indication |
| User Interface |
Home App |
| Connectivity |
Bluetooth, Wi-Fi 4, Ethernet, 4G (Optional) |
| Communication Protocols |
OCPP 1.6J & OCPP 2.0.1 |
| Pile Group Management |
CT-Clamp, CT-Box |
| User Authentication |
Plug & Charge, RFID Card, App, OCPP |
| Card Reader |
ISO 14443 A/B |
| Software Update |
OTA |
| CERTIFICATION & STANDARDS |
| Safety & Compliance |
EN 62196-2:2017-06, EN IEC 61851-1:2019-10, EN IEC 61851-21-2:2021-09, EN 62196-1:2015-05, EN 61008-1, IEC 62955 |
| Certification |
CE |
| Warranty |
24 months |
| GENERAL |
| Enclosure Rating |
IP65, IK10 |
| Operating Altitude |
<2000m |
| Operating Temperature |
-30°C ~ +50°C |
| Storage Temperature |
-40°C ~ +85°C |
| Operating Humidity |
5~95% |
| Mounting |
Wall mount / Pedestal (Optional) |
| Colour |
White |
| Product Dimensions (H × W × D) |
297.2 × 208.3 × 100.58 mm |
